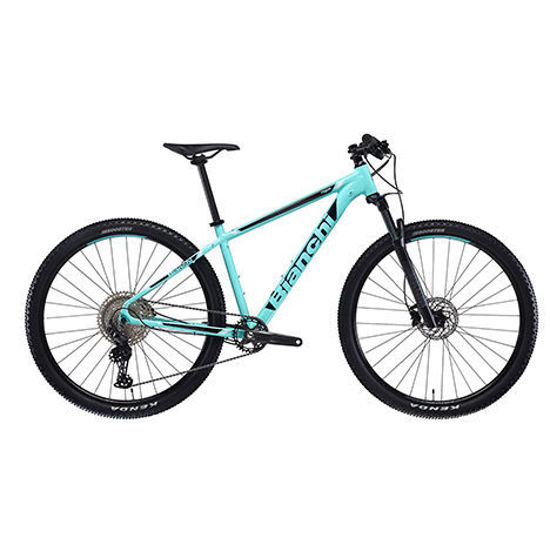

FRAME - Magma 29 alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21"
FORK - Rock Shox Judy TK 29" 100mm w/Remote Lockout,1,1/8" steel HT, alloy crown, coil spring w/pre-load adjust, steel 30mm stanchions, magnesium lowers w/PM 160mm disc mount, 9mm QR
HEADSET - Fsa TH888 forged steel cups ID diam.34mm, stack height 12,8+11=23,8mm, w/15mm cap
SHIFTERS - Deore SL-M5100-R 1x11, clamp band
REAR DERAILLEUR - FH-MT200-B for Center Lock, 32h 141mm OLD BOOST
FRONT DERAILLEUR - Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR
CRANKSET - Shimano FC-M5100-1, 32T, crank length: 170mm-15", 175mm-17/21"
BOTTOM BRACKET - included in the crankset
CHAIN - Kmc X11 EPT finish, 11sp
BRAKES - Shimano BR-MT200, resin pad
ROTOR - Shimano SM-RT10, 160mm front & rear, Center Lock, for resin pad only
WHEELS - VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole
TIRE -Kenda Booster 29x2.20, DTC compound, 30Tpi, wire, ETRTO 56-622
STEM - Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17", 90mm-19/21"Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweepVelomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
GRIPS - T-one T-GP48B, one piece grip, TPR material, 130mm
SEATPOST - Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm
SADDLE - Velomann, steel rails, PVC soft touch cover, 140mm width
